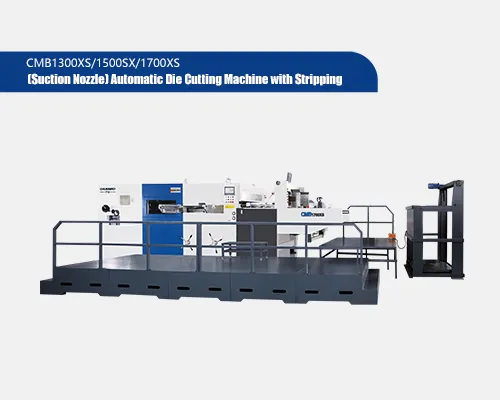

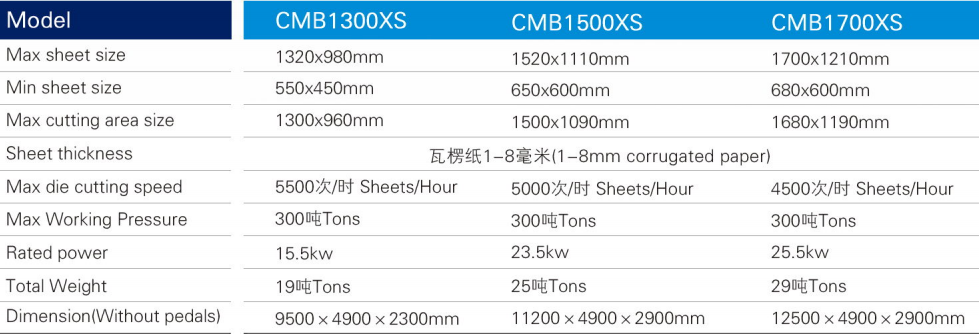

1.CMB-1300XS/1500XS/1700XS (down suction) fully automatic die-cutting machine with stripping. This product is suitable for the productionof corrugated boxes, and has its own characteristics for color boxes.

2.The unique design of paper teeth and the use of specialy treated tooth structure make the distance between the teeth to be held minimum,save paper and improve your net profit. Our equipment is suitable for the precise processing of color paper mounting, because there is atleast 3-4mm paper jam at the front of the paper mounting, and many of the market equipment uses the pinprick paper feeding method.The paper will be pulled out during the movement process, and the paper processing accuracy cannot be guaranteed, so the applicationrange of the tooth holding method is wider.

3.We use 300-1-200 type intermittent mechanism, and increase the intermittent box with 300mm center distance. The torque will be 45% higherthan that of 250mm, which is more suitable for processing large-panel cartons. .

4.The 200 degree travel angle leaves longer time for paper renewal, reduces the dependence on the operator's sensitivity, and providesconvenience for your employment.

5.High-quality printing industrial chain is adopted. The double-pitch chain imported from the UK has been paired and tested. The pitch is 50.4,which has high strength, large tension and long service life, ensuring stable machine operation and improving product accuracy.

6.The paper feeding technology of the lower suction nozzle with unique design is adopted, and the front cardboard can be adjusted up anddown according to the paper thickness.

7.The right cardboard stopper can be used for independent pneumatic paper leveling.

8.The vacuum pump is used to feed the paperboard into the paper roller, which is not easy to scratch the printing surface. Reduce the waste ofcustomer products.

Features of die-cutting machine

Key Features of Die Cutting Machines – A Complete Guide

Die-cutting machines are widely used in industries such as packaging, automotive, electronics, and textiles due to their precision, efficiency, and versatility. Understanding the key features of die-cutting machines helps businesses choose the right equipment for their production needs.

1. High Precision & Accuracy
Tight Tolerances: Modern die-cutting machines achieve ±0.1mm accuracy, ensuring clean cuts for intricate designs.
Laser-Guided Alignment: Some models use optical sensors to maintain perfect die positioning.
Kiss Cutting & Through Cutting: Adjustable depth control allows for partial or full cuts, ideal for labels and adhesive materials.

2. Versatility in Material Compatibility
Die-cutting machines can process a wide range of materials, including:
Paper & Cardboard (for packaging, labels)
Plastics & Films (flexible packaging, insulation)
Rubber & Foam (gaskets, seals, cushioning)
Fabric & Leather (apparel, footwear, upholstery)
Thin Metals (shielding components, automotive parts)

3. Different Types of Die Cutting Machines
A. Flatbed Die Cutting Machines
Best for: Thick, rigid materials
Features: High force (up to 1,000+ tons), customizable dies, slower but highly precise

B. Rotary Die Cutting Machines
Best for: High-speed production (e.g., labels, tapes)
Features: Continuous roll-fed processing, fast operation (up to 300m/min)

C. Digital Die Cutting Machines
Best for: Prototyping & short runs
Features: No physical dies needed, CNC/laser-based cutting

4. Automation & Smart Features
Automatic Feeding & Ejection: Reduces manual labor and speeds up production.
Touchscreen Controls: Easy setup with preset cutting programs.
IoT & Industry 4.0 Integration: Some machines offer remote monitoring & predictive maintenance.

5. Durability & Low Maintenance
Hardened Steel Components: Long-lasting dies and cutting plates.
Self-Lubricating Systems: Minimize wear and tear.
Easy Blade Replacement: Reduces downtime.

6. Energy Efficiency & Cost Savings
Servo-Driven Motors: Reduce power consumption by up to 30%.
-Quick-Change Dies: Minimize setup time and material waste.

7. Safety Features
Emergency Stop Buttons
Light Curtains & Safety Sensors
Automatic Shutdown in Case of Malfunction

8. Applications Across Industries
Packaging: Custom boxes, inserts, labels
Automotive: Gaskets, interior trim
Electronics: Insulation films, circuit board parts
Medical: Adhesive pads, wound care products

9. Future Trends in Die Cutting Technology
AI-Powered Optimization: Auto-adjusts pressure & speed based on material.
3D Die Cutting: For embossing and complex shapes.
Eco-Friendly Machines: Reduced energy and material waste.

Conclusion: Why Choose the Right Die Cutting Machine?
The features of die-cutting machines—precision, speed, material flexibility, and automation—make them indispensable in manufacturing. Investing in the right type (flatbed, rotary, or digital) ensures higher productivity, lower waste, and superior product quality.

Die-Cutting Machine Technology Innovation

Die Cutting Technology Revolution: 10 Cutting-Edge Innovations Transforming the Industry

The Future of Die Cutting: How Advanced Technologies Are Redefining Precision Manufacturing

The die cutting industry is undergoing its most significant transformation in decades. This comprehensive guide explores the latest technological breakthroughs that are boosting productivity, improving precision, and reducing environmental impact across packaging, automotive, electronics, and medical device manufacturing sectors.

1. Smart Die Cutting Systems with IoT Integration

Real-Time Performance Monitoring
- Embedded sensors track 50+ parameters (pressure, temperature, vibration)
- Predictive analytics forecast maintenance needs with 92% accuracy
- Cloud-based dashboards provide remote equipment monitoring

Case Study: A European packaging plant reduced unplanned downtime by 68% after implementing IoT-enabled die cutters

AI-Powered Optimization
- Machine learning algorithms analyze cutting patterns
- Automatic adjustment of speed, pressure, and registration
- Self-improving systems that learn from every production run

---

2. Next-Generation Laser Die Cutting Technology

Fiber Laser Advancements
- 30% faster than CO₂ lasers
- 0.01mm precision for micro-cutting applications
- Energy savings up to 40%

Hybrid Laser/Mechanical Systems
- Combines laser precision with mechanical speed
- Ideal for multi-layer materials (up to 15mm thickness)
- Automated tool switching between processes

3. Digital Flatbed Cutting Revolution

Environmental Advantages
- No physical dies required
- 90% less material waste through optimized nesting
- Energy recovery systems repurpose 30% of power

4. Advanced Rotary Die Cutting Innovations

Magnetic Cylinder Technology
- Die changes in <5 minutes (vs. 45+ minutes traditional)
- Precision alignment with laser positioning
- 50% longer die life through even pressure distribution

Ultra-High-Speed Systems
- 400m/min cutting speeds
- Web stabilization technology for thin materials
- Integrated inspection at full production speed

5. Sustainable Die Cutting Solutions

Eco-Friendly Material Processing
- Water-based adhesives replacing solvents
- Biodegradable tooling boards
- Closed-loop lubrication systems

Energy Efficiency Breakthroughs
- Regenerative drives recover braking energy
- Smart power management reduces idle consumption
- LED UV curing uses 75% less energy

6. Micro-Die Cutting for Electronics

Precision Requirements
- Tolerances to 5μm
- Clean room compatibility
- Static-free processing

Emerging Applications
- Flexible circuit boards
- Medical device components
- Thin-film solar cells

7. Automated Quality Control Systems*

Vision Inspection Technologies
- 200MP high-speed cameras
- AI defect recognition
- Real-time rejection systems

Statistical Process Control
- Six Sigma implementation
- CpK >1.67 standards
- Automated reporting



8. The Future: Industry 4.0 Integration

Digital Twin Technology
- Virtual machine modeling
- Production simulation
- Performance optimization

#Blockchain in Die Cutting
- Material traceability
- Tooling lifecycle tracking
- Quality assurance verification

9. Implementation Roadmap

Skills Development
Operator training programs
Data analytics certification
Preventive maintenance 4.0

10. Conclusion: The New Era of Die Cutting

These technological advancements are delivering:
45-65% productivity gains
30-50% waste reduction
25% energy savings

Die-Cutting Machine Accuracy Control

1. The Science of Die Cutting Precision
Precision in die cutting is measured by three core metrics:
1. Positional Accuracy: Alignment consistency (e.g., ±0.02mm)
2. Cutting Edge Quality: Burr height (<5μm) and angle consistency (30°±1°)
3. Repeatability: Deviation over 10,000 cycles (±0.03mm max)

Industry Benchmark: Medical device cutting requires ISO 13485-certified <0.1mm tolerances, while electronics EMI shielding demands <0.05mm.

2. 6 Critical Factors Affecting Precision

2.1 Frame Rigidity & Vibration Control
- Carbon Fiber-Reinforced Frames**: Reduce harmonic vibrations by 60% vs traditional steel
- Active Damping Systems:
  - Piezo actuators counter vibrations in real-time (response time: 2ms)
  - Laser interferometers monitor frame distortion (0.001mm resolution)

2.2 Thermal Compensation Systems
- Real-Time Solutions:
  1. Machine Learning Algorithms: Predict thermal expansion using 20+ embedded temperature sensors
  2. Cooling Channels: Maintain frame temperature at 23°C±0.5°C via liquid cooling
  3. Compensation Tables: Auto-adjust servo positions every 0.1°C change

2.3 Tooling & Die Engineering
- Micro-Ground Blades: Edge roughness Ra <0.1μm (compared to standard Ra 0.4μm)
- Smart Dies with IoT Sensors:
  - Monitor blade temperature (prevent thermal warping)
  - Track cutting force variations (detect dullness early)

2.4 Material Feeding Technology
- Vision-Guided Systems:
  - 12MP cameras with 100fps capture
  - Subpixel registration accuracy: 1/64 pixel (≈0.0015mm)
- Vacuum Conveyors: Eliminate slippage with -80kPa suction

2.6 Environmental Controls
- ISO Class 5 Cleanrooms: Reduce particle contamination affecting thin films
- Humidity Stabilization: Maintain 45%±5% RH for hygroscopic materials

3. Step-by-Step Precision Optimization Protocol

3.1 Machine Preparation
1. Laser Alignment**:
   - Use Renishaw XL-80 laser interferometer
   - Check X/Y/Z axes parallelism (<0.01mm/m deviation)
2. Ball Screw Preload Adjustment:
   - Apply 8–10% of dynamic load for minimal backlash

3.2 Dynamic Calibration Process
- Closed-Loop Feedback Workflow:
  1. Cut test pattern (ISO 12647-2 compliant)
  2. Measure with Keyence VR-6000 3D scanner
  3. Auto-generate compensation map
  4. Upload to CNC controller

3.3 AI-Driven Predictive Adjustments
- Deep Learning Models:
  - Input: Material properties (thickness, elasticity), environmental data
  - Output: Optimized pressure/speed parameters
- Result: 40% faster setup with 90% first-pass accuracy

4. Emerging Technologies Redefining Precision

- Quantum Positioning Sensors: Achieve 0.0001mm resolution via entangled photons
- Self-Healing Tool Coatings: TiAlN nanocomposite layers regenerate edge geometry
- Digital Twin Simulation: Predict precision loss 6 months in advance with 95% accuracy

FAQ Section (Voice Search Optimized):

Q: How to measure die cutting machine accuracy?
A: Use ISO/ASTM-compliant test grids with 0.01mm gradation, scanned via 5μm-resolution optical comparators.

Q: Can retrofitting improve old machines' precision?
A: Yes – adding linear encoders (+±0.005mm) and servo drives can upgrade 1990s models to modern standards.

Q: Why does humidity affect cutting precision?
A: Paper/foam expands 0.03% per 10% RH increase – use climate-controlled chambers for critical applications.
